| 150
lbs |
ANSI
B 16.5 |

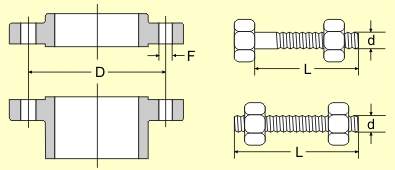

| Diâmetro
Nominal |
D |
F |
N°
de Parafusos |
Diâmetro
dos Parafusos |
Comprimento
L (mm) |
| Prisioneiros |
Parafuso |
| Pol. |
mm |
mm |
d
(pol) |
Ressalto
1/16" |
Ring-Joint |
Ressalto
1/16" |
| 1/2" |
60,3 |
16,0 |
4 |
1/2 |
57,0 |
- |
44,5 |
| 3/4" |
69,8 |
16,0 |
4 |
1/2 |
57,0 |
- |
51,0 |
| 1" |
79,4 |
16,0 |
4 |
1/2 |
63,5 |
76,0 |
51,0 |
| 1.1/4" |
88,9 |
16,0 |
4 |
1/2 |
63,5 |
76,0 |
57,0 |
| 1.1/2" |
98,4 |
16,0 |
4 |
1/2 |
70,0 |
82,5 |
57,0 |
| 2" |
120,6 |
19,0 |
4 |
5/8 |
76,0 |
89,0 |
70,0 |
| 2.1/2" |
139,7 |
19,0 |
4 |
5/8 |
82,5 |
95,0 |
76,0 |
| 3" |
152,4 |
19,0 |
4 |
5/8 |
89,0 |
101,5 |
76,0 |
| 3.1/2" |
177,8 |
19,0 |
8 |
5/8 |
89,0 |
101,5 |
76,0 |
| 4" |
190,5 |
19,0 |
8 |
5/8 |
89,0 |
101,5 |
76,0 |
| 5" |
215,9 |
22,0 |
8 |
3/4 |
95,0 |
108,0 |
82,5 |
| 6" |
241,3 |
22,0 |
8 |
3/4 |
95,0 |
108,0 |
82,5 |
| 8" |
298,5 |
22,0 |
8 |
3/4 |
101,5 |
114,5 |
89,0 |
| 10" |
362,0 |
25,5 |
12 |
7/8 |
114,5 |
127,0 |
95,0 |
| 12" |
431,8 |
25,5 |
12 |
7/8 |
114,5 |
127,0 |
101,5 |
| 14" |
476,2 |
28,5 |
12 |
1 |
127,0 |
139,5 |
108,0 |
| 16" |
539,7 |
28,5 |
16 |
1 |
133,5 |
146,0 |
114,5 |
| 18" |
577,8 |
32,0 |
16 |
1.1/8 |
146,0 |
159,0 |
120,5 |
| 20" |
635,0 |
32,0 |
20 |
1.1/8 |
152,5 |
165,0 |
133,5 |
| 24" |
749,3 |
35,0 |
20 |
1.1/4 |
171,5 |
184,0 |
146,0 |
|
